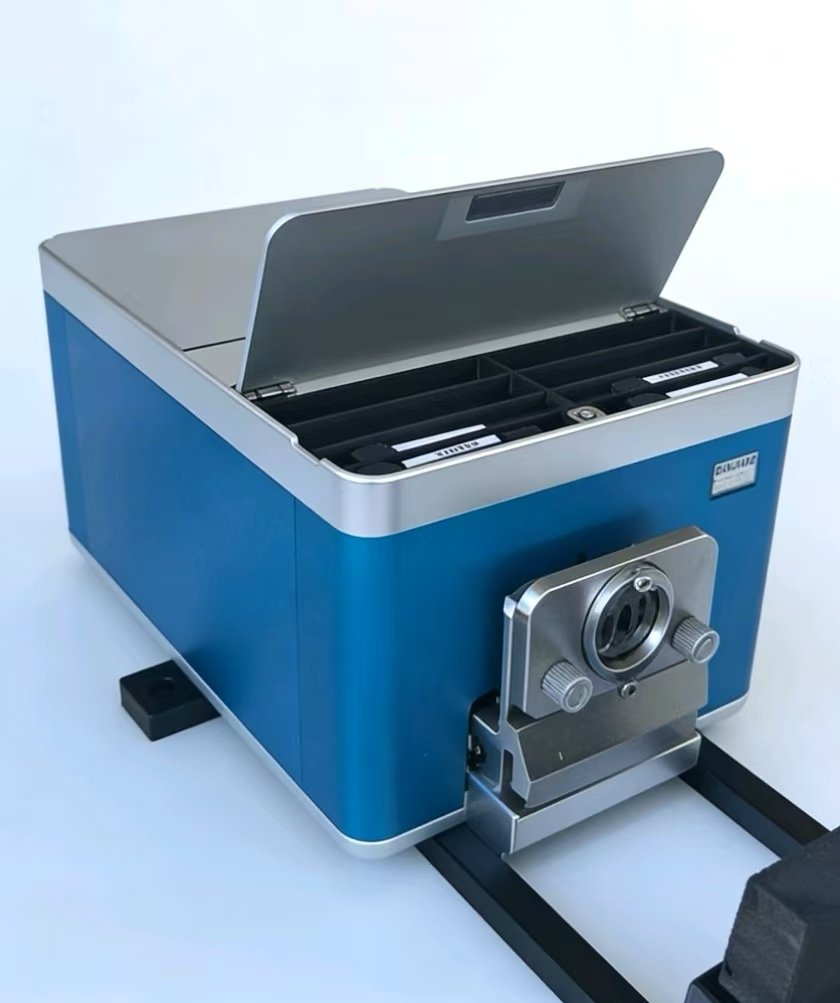

MTX Single/Multi-Channel Integrated Interferometer
MTX is a non-contact, auto-focusing, self-calibrating white light scanning interferometer. The product utilizes white light and red light interference principles to reconstruct the geometric shape of optical fiber end faces, thereby calculating various technical parameters. In addition to measuring multi-core fiber optic connectors such as MT and MTRJ , it is also compatible with conventional single-core connectors like FC, SC, ST, LC, and MU. This makes it an essential inspection device in the production process of fiber optic

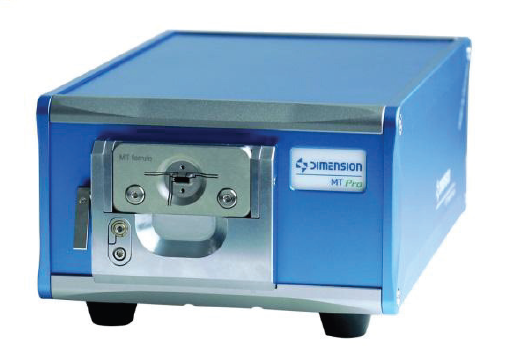

MT Pro Single/Multi-Channel Integrated Interferometer
One-click automation, meets diverse needs for surface 3D profiling and interference detection.
Image resolution up to 1.5 ? M
Fast measurement speed, single core 0.5s, 12 core 5s
Using a 0.1nm precision laser interferometer for calibration, the measurement results are accurate
Supports single core and multi core (2-72 cores) measurement
Auto focus and automatic measurement functions
BINNA MT16/MTS Single/Multi Channel Integrated Interferometer
BINNA MT16/MTS is an automatic and non contact fiber endface interferometer for both multi fiber and single fiber connectors.It can measure the geometry parameters of multi fiber connector such an fiber height,core dip,X and Y angle,radius of curvature with white light and measure geometry parameters of single fiber connector with red light.The software can display the surface of the connector in 3D image for a very short time,it needs only 5s to test 12-core MT connector. (Read More…)
FUTURE Automatic 5D Fiber End-face Interferometer
FUTURE is the brand new Automatic Fiber End-face Interferometer developed by Dimension Technology, based on our know-how and experience on the fiber inspection instrument.FUTURE provides the comprehensive fiber end-face measurement functions, including 3D profile, auto focusing, auto calibration, auto APC angle tuning and auto end-face judgment. All testing and reporting can be finished in 1.5 second. (Read More…)
SANA2 Fiber End-face Interferometer
SANA2 is the brand new Manual Focus Fiber End-face Interferometer, inheriting Dimension Technology’s know-how and experiences on Interferometer design. Based on classic SANA series, SANA2 is the first model to integrate auto APC angle tuning, auto measurement and auto reporting functions. (Read More…)
SANA MINI Fiber End-face Interferometer
SANA mini is a portable, non contact fiber endface interferometer developed by dimension for single fiber connector. Despite its incredible size, it can test geometry parameters of single fiber connector as well as bare fiber and bare ferrules. The performance of SANA mini is in the same grade of sana. SANA mini is the pioneer of portable interferometer. (Read More…)
